Presentation folder flat size: why the printed sheet is so much bigger

Why the flat sheet is bigger than the folder

A folder is a folded and assembled piece. The closed size describes the finished object, not the sheet it came from. The sheet has to carry several additional areas.

Add those up and the flat sheet for a 9 x 12 in folder is substantially wider and taller than 18 x 12 in. Because pocket depth, glue tab width and spine allowance all vary by construction, there is no single number to quote, which is the practical reason to request the template rather than estimate.

The pockets are printed upside down relative to the folder

This is the detail that surprises people the first time they open a folder template. Pocket artwork sits at the bottom of the flat sheet and folds upward, so relative to how it appears when flat, it ends up the other way round once assembled.

That means a pattern that runs continuously down the inside panel and onto the pocket has to be drawn in two orientations to look continuous on the finished folder. It also means a logo placed on a pocket looks upside down on the press proof and correct on the folder, which is exactly the situation where somebody raises an alarm.

• Keep the template on a locked top layer and never rescale it.
• Identify every area by name from the template legend before designing.
• Rotate a copy of each pocket area on screen and read it as it will be seen.
• Keep critical content away from every fold and glue area.
• Print the flat artwork at full size, cut it out and assemble it with tape.

That last step is the whole quality check. A paper mock up of a folder takes ten minutes and catches upside down pockets, artwork that dies in the spine and a business card slit positioned where your logo sits.

Pocket capacity and the spine

A standard flat pocket suits a modest stack of pages. If your packets are thick, the pocket bows outward, the folder no longer closes flat and it looks sloppy on a desk.

Capacity is set by the spine and by the pocket construction, and both are decided before artwork. Measure your thickest realistic packet, in sheets, and ask whether the construction handles it before you design. A folder that cannot hold its own contents is worse than no folder.

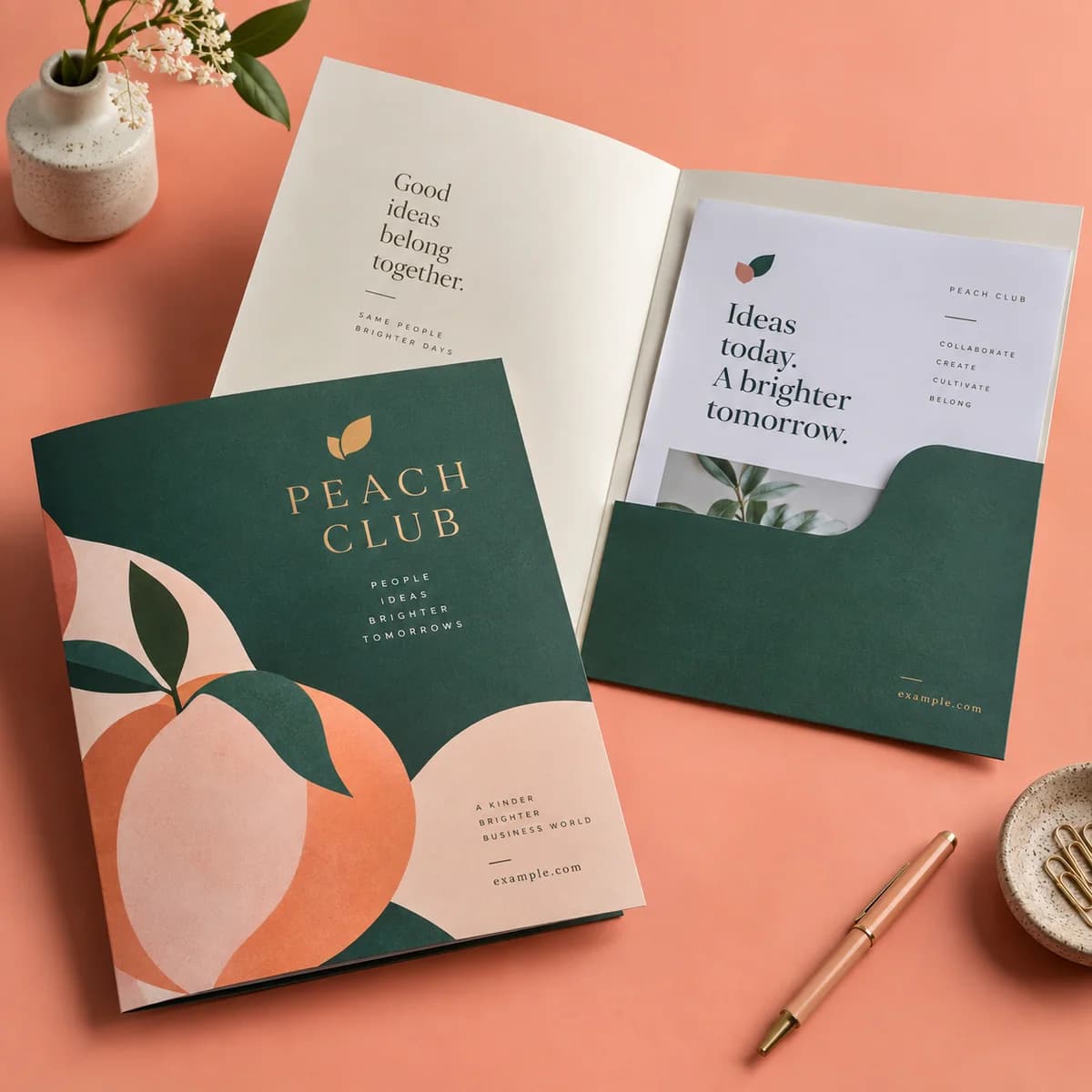

The folder in the catalog comes in A4, A5 and US letter sizes, in matte, glossy or soft touch paper, with single or double inside pockets, a business card slot included, and a choice of glued or interlocking pocket styles. Interlocking pockets assemble without glue, which is useful for small quantities and for shipping flat.

A4 or US letter is not a small detail

A4 at 210 x 297 mm is narrower and taller than US letter at 8.5 x 11 in. A folder built for letter sheets has pockets that are slightly too wide and slightly too short for A4, which means A4 pages stick out of the top.

The ISO A series is built on an aspect ratio of about 1 to 1.414, so every A size halves into the next with the same proportions. US sizes do not work that way, which is why mixing the two systems in one folder never quite resolves. Choose the size that matches the paper your documents are actually printed on, and if you operate across both regions, expect to run two folders rather than one compromise.

What happens when you mail one

A 9 x 12 in folder is well over the letter height maximum of 6.125 in, so a folder in a 9 x 12 in envelope mails as a flat, not a letter. Flats have their own size limits, and they must stay flexible and uniformly thick.

A stuffed folder is neither flexible nor uniformly thick. Once the pockets are full, the piece is effectively a parcel in a paper envelope, and it will be handled and priced accordingly. If folders will be mailed rather than handed over, take a fully assembled and filled sample to a Post Office before you build a mailing around it, or plan to send folders in a box.

Design the outside for a desk, not a hand

A folder often sits face up on someone's desk for weeks, which makes the front cover a quiet, long lived piece of brand presence. Keep it simple: logo, a short line describing what is inside, and space.

The back can carry an address, a website and a QR code. Dark full coverage designs on a folder show scuffs and can crack at the folds, so if you want a dark cover, specify a protective coating and accept that soft touch will show finger marks more than gloss.

Keep the folder generic and customize the inserts. That keeps print runs larger, avoids throwing away folders when one detail changes, and is the single biggest cost saving available on this product.

Flat size checklist

• Request the template for the exact folder construction and size.
• Do not estimate the flat size from the closed size.
• Keep the template on a locked top layer and identify every area by name.
• Remember pocket artwork folds upward and appears inverted on the flat sheet.
• Keep critical content away from folds, glue areas and card slits.
• Measure your thickest realistic packet against the pocket capacity.
• Match A4 or US letter to the paper your documents are printed on.
• Assemble a full size paper mock up before approving artwork.
• Test a filled folder in its envelope before planning a mailing.
